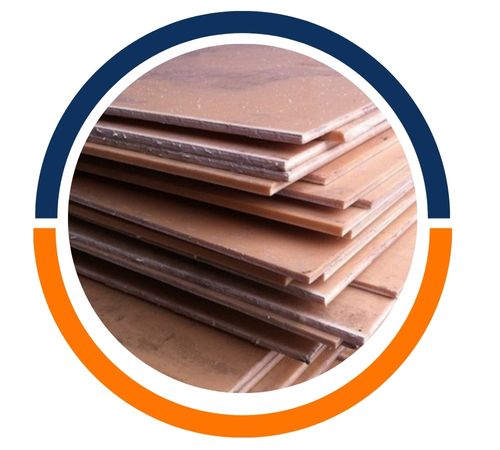

Yousef Steel stands out as a top manufacturer and supplier of **ARCELOR 400 Sheets and Plates** in Riyadh, Saudi Arabia. We specialize in providing high-quality, wear-resistant steel solutions tailored for tough industrial applications. Thanks to our advanced quenching and tempering processes, ARCELOR 400 strikes the perfect balance between hardness, toughness, and weldability, making it an excellent choice for equipment that faces moderate to severe abrasive conditions. At Yousef Steel, we prioritize strict quality control and comply with international standards, ensuring that our durable plates are perfect for mining, construction, material handling, and other heavy-duty industries.
Our ARCELOR 400 Sheets and Plates are crafted with a blend of carbon, manganese, silicon, chromium, and nickel, which enhances wear resistance while still allowing for good formability and weldability. With a nominal hardness of **around 400 HBW**, these plates deliver impressive toughness and impact resistance, making them ideal for components that endure abrasion and moderate impacts. They come in thicknesses from **6 mm to 100 mm** and widths up to **3500 mm**, and can be easily cut, bent, and welded according to recommended procedures, providing flexibility for various industrial applications.
Item: ARCELOR 400
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Internal grade | Thk (mm) | %C Max | %Mn Max | %P Max | %S Max | %SI Max | %Cr Max | %Ni Max | %Mo Max | B Max | CE Max |
| SRDQH40 | Up to 20 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 40 ppm | 0.45 |
| SRDQH41 | 20.1 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 40 ppm | 0.48 |
| SRDQH42 | 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.57 |
| SRDQH43 | 50.1 – 70.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 40 ppm | 0.65 |
| HARDNESS (BHN) | YS (MPa) | UTS (MPa) | %El (L0=50 mm) | Impact at -30°C (In Joules) | |
| Specified values | 370 – 430 | 900Min | 1100 | 10 | 30J Min (Longitudinal to rolling) |
| Typical indicative values for 20 mm | 390 – 410 | 1050 | 1240 | 12 | 40J |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
You’ll find ARCELOR 400 Sheets and Plates widely used in **mining equipment** like chutes, hoppers, crusher liners, and conveyor troughs, as well as in **construction machinery** such as loader buckets and earthmoving equipment. They’re also essential in material handling and processing equipment where durability and wear resistance are crucial. With their unique combination of hardness, toughness, and long service life, ARCELOR 400 sheets and plates offer cost-effective solutions for industries in need of reliable wear-resistant steel.
