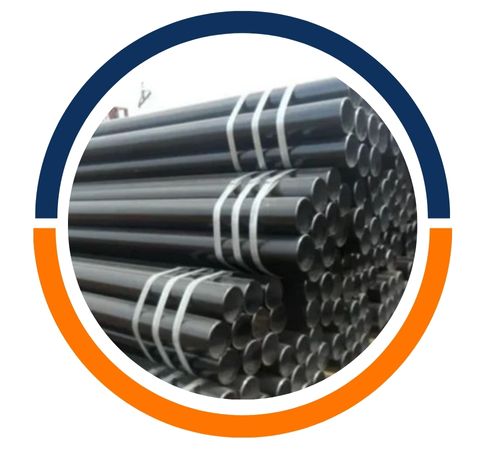

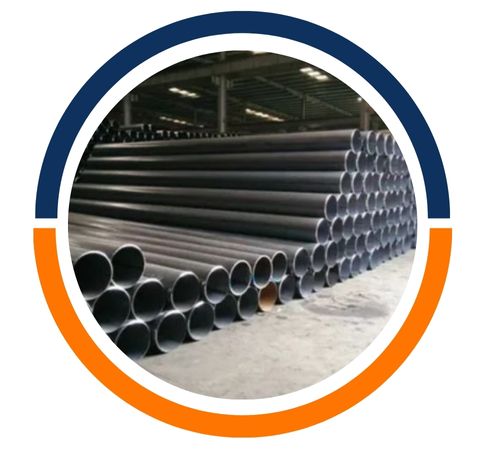

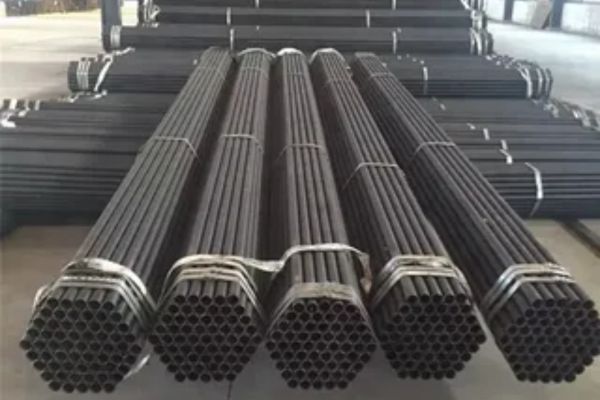

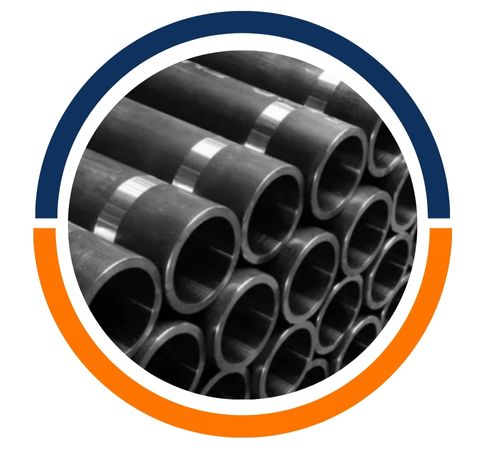

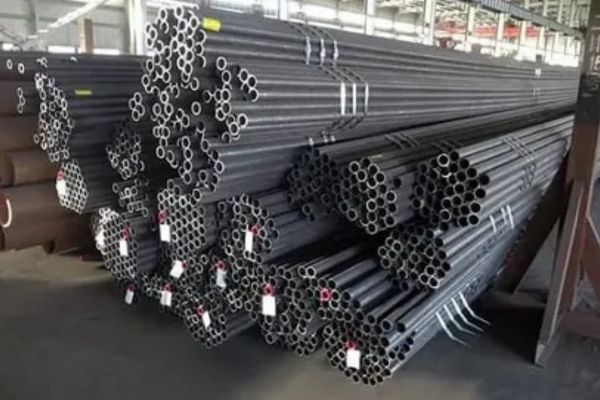

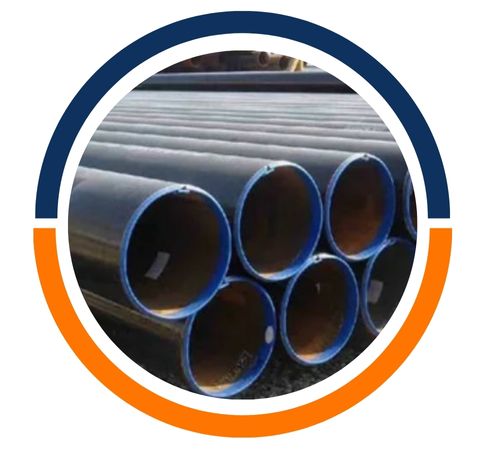

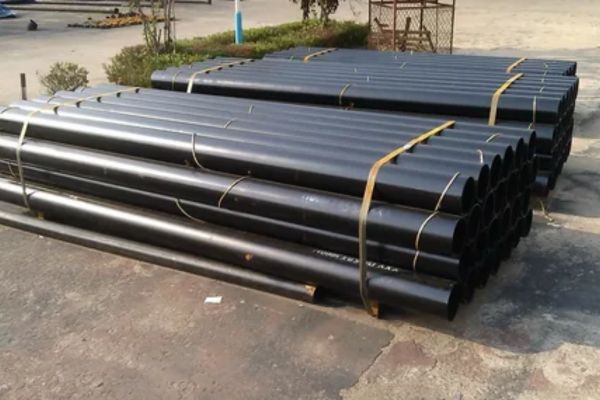

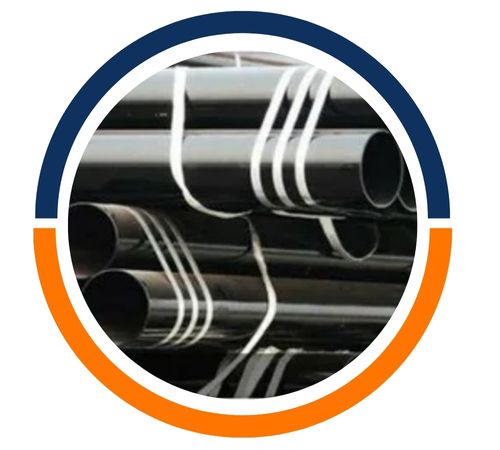

Yousef Steel is a well-respected manufacturer and supplier based in Riyadh, Saudi Arabia, known for delivering top-notch steel solutions like J525 tubing. This tubing stands out for its precision, reliability, and durability, making it a go-to choice for various applications. Crafted to meet rigorous international standards, J525 tubing is perfect for demanding hydraulic and mechanical tasks. With its impressive dimensional accuracy, superior surface finish, and consistent quality, it guarantees dependable performance even in high-pressure situations. Yousef Steel’s dedication to innovation, strict quality control, and timely delivery has made it a favorite among clients in the automotive, engineering, construction, and industrial sectors throughout the region.
The production of J525 tubing involves a carefully controlled mix of carbon, manganese, phosphorus, sulfur, and a few alloying elements, which together provide both strength and toughness. It boasts remarkable mechanical properties, including high tensile and yield strength, excellent ductility, and solid impact resistance. Plus, it offers great machinability, weldability, and formability, making it adaptable for a wide array of fabrication needs. Its ability to maintain structural integrity under stress and pressure ensures reliable long-term performance, especially in hydraulic and fuel systems where precision and safety are paramount.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Carbon | 0.06 – 0.18 Max |
| Manganese | 0.30 – 0.60 |
| Phosphorus | .040 Max |
| Sulfur | 0.050 Max |
| Yield Strength, min | 170 MPa |
| Ultimate Strength, min | 310 MPa |
| Elongation in 50 mm, min | 35% |
| Hardness (Rockwell B), max | 65 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| TUBING WALL THICKNESS TOLERANCES | |||
|---|---|---|---|
| Nominal Wall Thickness (Inches) | Nominal Tube OD Through 1” (+/- Inches) | Nominal Tube OD Over 1” Through 2” (+/- Inches) | Nominal Tube OD Over 2” Through 4” (+/- Inches) |
| .028 (22 Ga) | .002/.003 | .003/.003 | .003/.003 |
| .035 (20 Ga) | .002/.004 | .002/.004 | .002/.004 |
| .042 (19 Ga) | .002/.004 | .002/.004 | .002/.005 |
| .049 (18 Ga) | .004/.005 | .003/.005 | .004/.008 |
| .058 (17 Ga) | .006/.006 | .004/.008 | .004/.008 |
| .065 (16 Ga) | .006/.006 | .004/.008 | .004/.008 |
| .072 (15 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .083 (14 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .095 (13 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .100 | .006/.010 | .006/.010 | .006/.010 |
| .109 (12 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .118 | .006/.010 | .006/.010 | .006/.010 |
| .120 (11 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .134 (10 Ga) | .006/.010 | .006/.010 | .006/.010 |
| .148 (9 Ga) | — | .007/.001 | .007/.011 |
| .156 (5/32) | — | .007/.011 | .007/.011 |
| .165 (8 Ga) | — | .007/.011 | .007/.011 |
| .180 (7 Ga) | — | .007/.011 | .007/.011 |
| .197 | — | .008/0.12 | .008/0.12 |
| .203 (6 Ga) | — | .008/0.12 | .008/0.12 |
| .219 (7/32) | — | .008/.012 | .008/.012 |
| .236 | — | .014/.018 | .014/.018 |
| .238 (4 Ga) | — | .014/.018 | .014/.018 |
| .259 (3 Ga) | — | .014/.020 | .014/.020 |
J525 tubing finds extensive use in industries that demand durable and high-quality tubing solutions. It’s commonly utilized in hydraulic systems, automotive fuel and brake lines, and various mechanical engineering applications. Its high-pressure resistance makes it particularly suitable for fluid power systems, heat exchangers, and industrial equipment. Additionally, it plays a vital role in construction machinery, agricultural equipment, and general manufacturing processes. With its blend of strength, toughness, and precision, J525 tubing significantly boosts operational efficiency, safety, and longevity, making it an indispensable material across a range of industrial applications.
Yousef Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Riyadh, Saudi Arabia.
