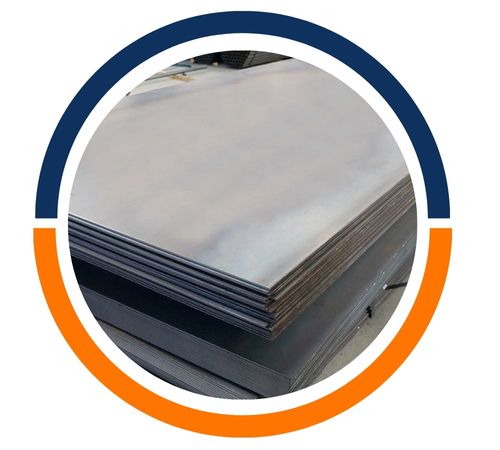

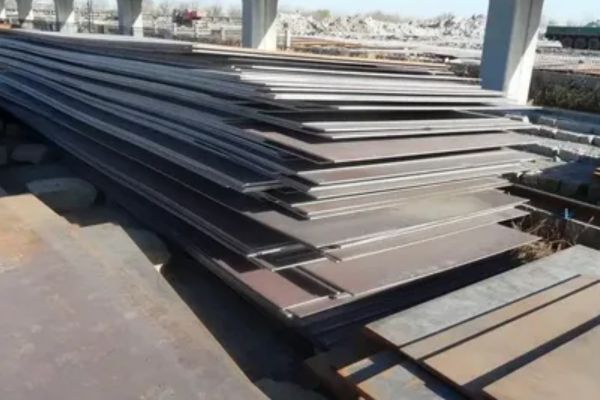

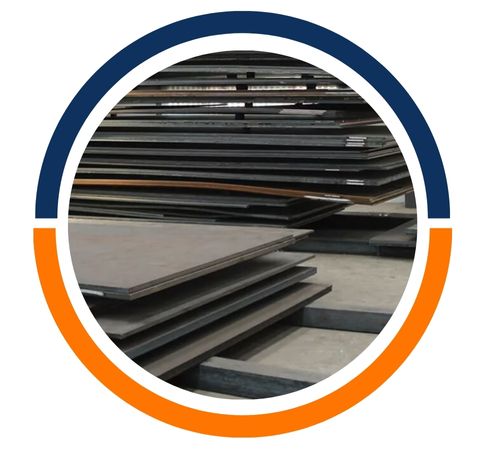

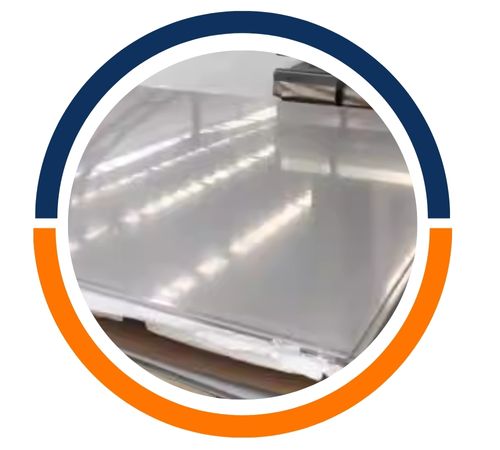

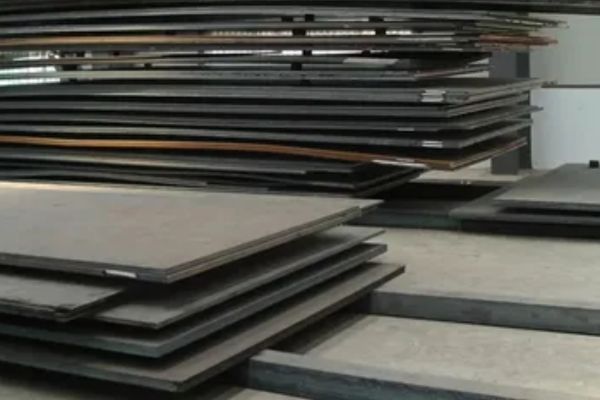

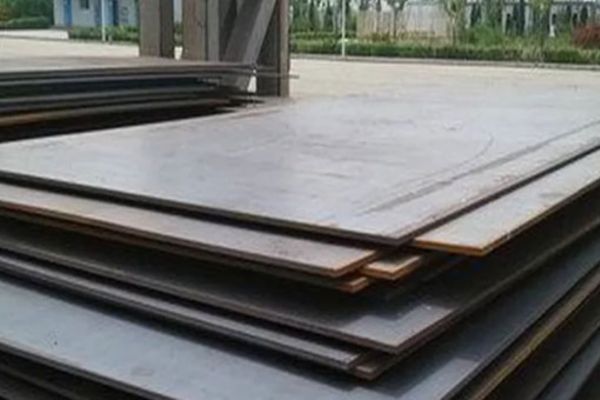

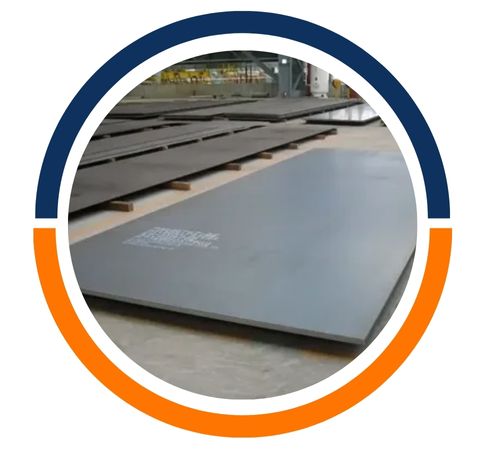

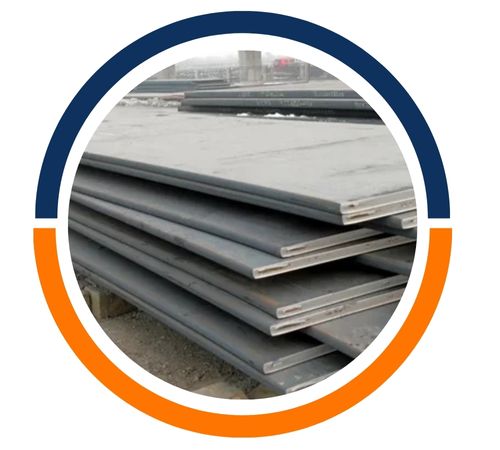

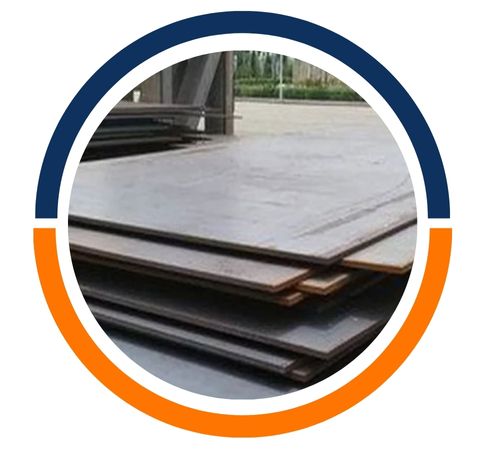

Yousef Steel, a trusted steel manufacturer and supplier located in Riyadh, Saudi Arabia, proudly offers top-quality **EN9 sheets and plates** that are perfect for applications demanding high surface hardness and solid mechanical strength. EN9 is a medium carbon steel grade celebrated for its excellent wear resistance and decent tensile strength, making it an ideal choice for components that face friction and mechanical stress. Yousef Steel guarantees precise manufacturing, dimensional accuracy, and a reliable supply for a variety of industrial, engineering, and fabrication needs.
Typically, EN9 contains 0.50–0.60% carbon and 0.50–0.80% manganese, which contribute to its remarkable hardness and strength after heat treatment. In its untreated state, it provides moderate machinability and a good surface finish, while heat-treated EN9 plates can achieve a tensile strength range of 600–800 MPa. This grade can be flame or induction hardened to enhance wear resistance while maintaining core toughness. EN9 steel is also suitable for oil quenching and tempering, striking a great balance between hardness and machinability.
Grade : EN9 Low Alloy Steel Plate
Thickness : from 3mm up to as thick as 150mm
Length :3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Process of Manufacturing : Hot-Rolled (HR)
| Â Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| BS 970 1991 | BS 970 1955 EN | AISI/SAE | Werkstoff |
| 070M55 | EN9 | 1055 | 1.0535 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
EN 9 sheets and plates find extensive application in industries because of their high tensile strength, toughness, and resistance to wear. The plates are best suited for the production of gears, shafts, spindles, and other machine parts under high stress. They are also employed in the automotive sector for axles and connecting rods. EN 9 steel is used for heavy engineering parts like dies, tools, and rollers. It performs well in moderate wear resistance applications and is widely used in the construction machine and farm machinery.
