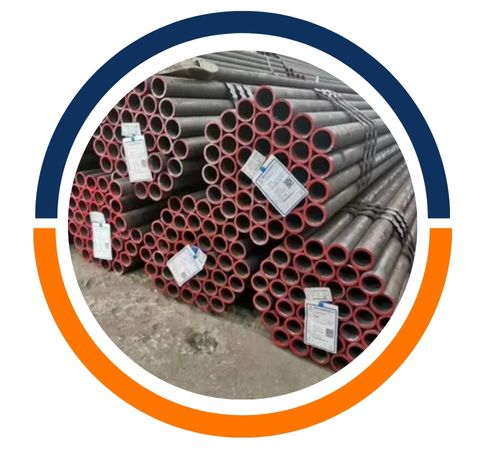

Yousef Steel A leading steel producers and supplier in Riyadh, Saudi Arabia, we pride in our qualities of high reliability. Being a specialized industrial steel product supplier, we provide a range of solutions in the spectrum. One of our prominent products is Carbon Steel JIS G3461 Pipe, which finds perfect applications in its applications with such good strength in high-pressure heat exchangers, boilers, and pressure vessels.Built in accordance with stiff industry requirements, our pipes meet the best expectations of strength and durability with very high resistance against high temperatures that make them suited for several different industrial sectors. Choose Yousef Steel for leading steel solutions.
The primary alloying constituents of the Carbon Steel JIS G3461 Pipe are carbon, manganese, phosphorus, sulfur, and silicon. They show excellent mechanical properties for usage under high pressure and temperature. Its basic content contains 0.12-0.20% carbon and 0.30-0.60% manganese along with trace elements of phosphorus and sulfur.Its major mechanical properties are tensile strength between 400 to 530 MPa, yield strength of 245 MPa, and elongation of 20 to 25 %. These attributes give a pipe robust corrosion resistance, strength at high temperature, and resistance to durability for its use in heat exchangers, boilers, and various demanding industrial conditions.
| Standards | JIS G3461 Carbon Steel Pipe |
|---|---|

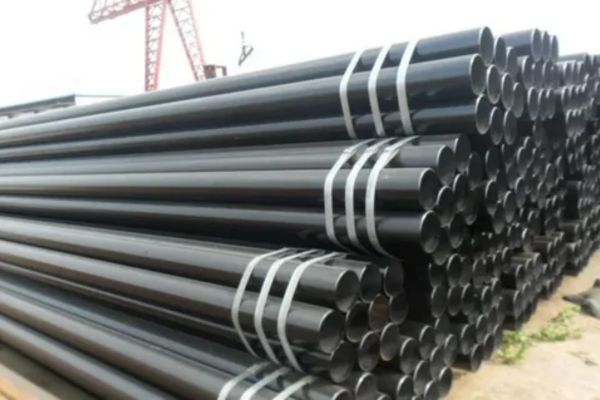

| JIS G3461 Carbon Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |

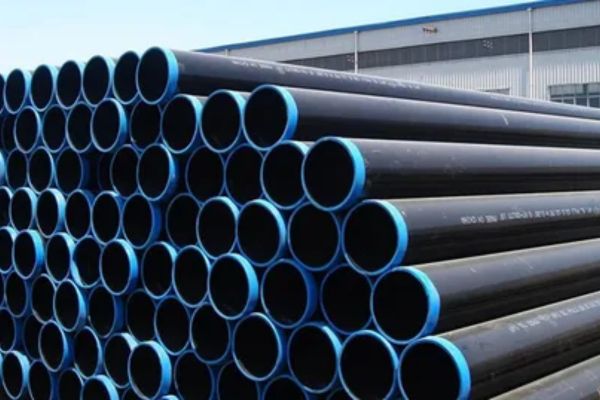

| JIS G3461 Carbon Steel Welded Pipe Size | 5.0 mm – 1219.2 mm |

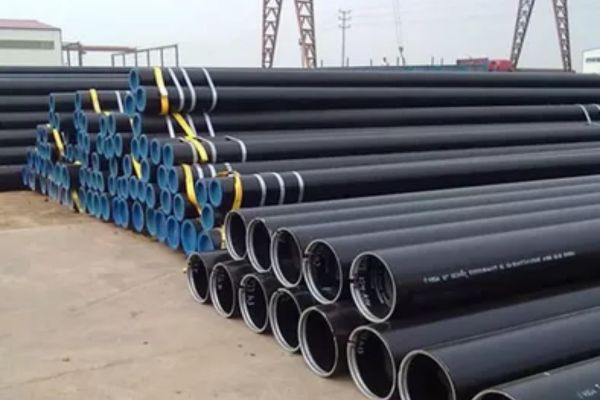

| JIS G3461 Carbon Steel EFW Pipe size | 5.0 mm – 1219.2 mm |
| JIS G3461 Carbon Steel Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3461 Carbon Steel Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| JIS G3461 Carbon Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| JIS G3461 Carbon Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

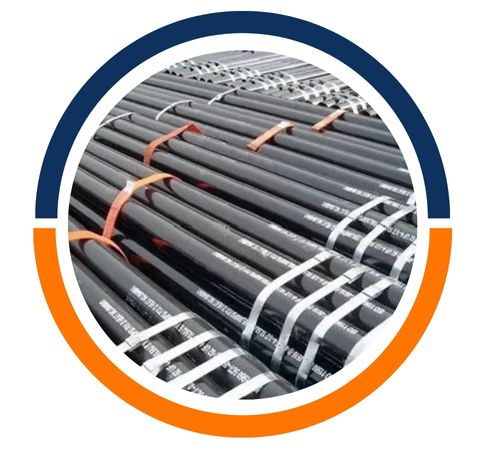

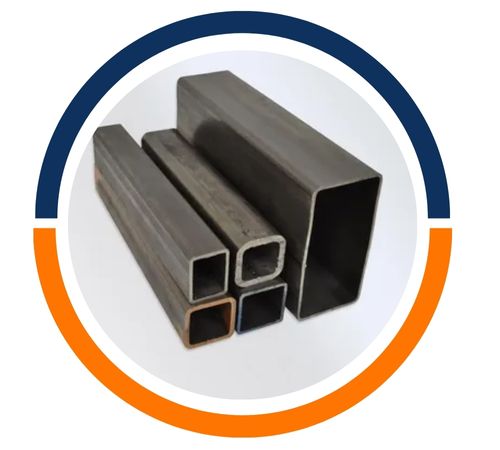

| Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| End | Plain End, Beveled End, Treaded Pipe & Tube |
| Marking | All JIS G3461 Carbon Steel Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Standard | Grade | Chemical Composition Limits (%) | ||||
| C | Si | Mn | P | S | ||
| JIS G3461 | JIS G3461 STB340 | ≤ 0.18 | ≤ 0.3 | 0.30-0.60 | ≤ 0.035 | ≤ 0.035 |
| JIS G3461 STB410 | ≤ 0.32 | ≤ 0.35 | 0.30-0.80 | ≤ 0.035 | ≤ 0.035 | |
| JIS G3461 STB510 | ≤ 0.25 | ≤ 0.35 | 1.00-1.50 | ≤ 0.035 | ≤ 0.035 | |
| Grade | Tensile Property (N/mm2) | Yield Point or Yield Strength (N/mm2) | Elongation (%) | ||
| OD ≥20 mm | 10 mm ≤OD ＜20 mm | OD ＜10 mm | |||
| NO. 11 Sample; NO. 12 Sample | NO. 11 Sample | NO. 11 Sample | |||
| Longitudinal | Transverse | Transverse | |||
| JIS G3461 STB340 | ≥ 340 | ≥ 175 | ≥ 35 | ≥ 30 | ≥ 27 |
| JIS G3461 STB410 | ≥ 410 | ≥ 255 | ≥ 25 | ≥ 20 | ≥ 17 |
| JIS G3461 STB510 | ≥ 510 | ≥ 295 | ≥ 25 | ≥ 20 | ≥ 17 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yousef Steel is a leading manufacturer and distributor of high-quality Carbon Steel JIS G3461 Pipe in Riyadh, Saudi Arabia. Offering premium steel materials, the company provides an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional service, we ensure that only the finest raw materials are used to guarantee superior performance in all industrial applications with stringent requirements. Contact us today to meet your Carbon Steel JIS G3461 Pipe needs.
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
Carbon Steel JIS G3461 Pipe is widely used in various high-pressure and high-temperature applications because of excellent mechanical properties and durability. This is commonly used in heat exchangers, boilers, and pressure vessels, where resistance to heat and pressure is essential. These pipes are also ideal for oil and gas industries, petrochemical plants, and power plants, giving reliable performance in demanding environments. The JIS G3461 pipes are used in water supply systems, steam lines, and chemical processing where strength, corrosion resistance, and thermal stability are critical for long-lasting operation in industrial applications.
Yousef Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Riyadh, Saudi Arabia.
