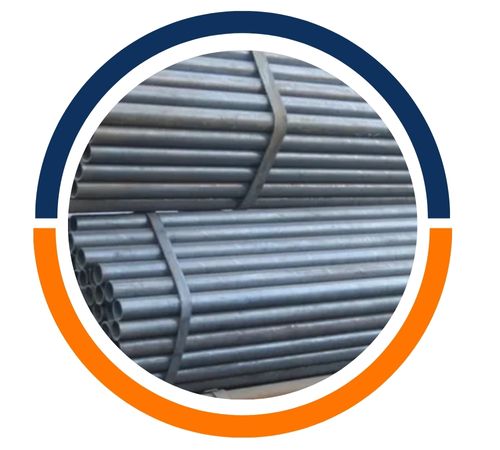

Yousef Steel is a reputable manufacturer and supplier of Carbon Steel EN 10216-2 Pipes, proudly based in Riyadh, Saudi Arabia. Renowned for providing top-notch steel solutions, Yousef Steel focuses on seamless carbon steel pipes that adhere to EN 10216-2 standards, specifically designed for handling pressure at elevated temperatures. These pipes find extensive use in power generation, petrochemical industries, and various industrial process systems. With a strong commitment to excellence, precision in manufacturing, and ensuring customer satisfaction, Yousef Steel delivers reliable and durable piping solutions that cater to the demanding requirements of different sectors throughout Saudi Arabia, as well as the broader Middle Eastern and global markets.
Carbon Steel EN 10216-2 Pipes are primarily made up of carbon and iron, with additional elements like manganese, silicon, and small amounts of phosphorus and sulfur. These pipes are designed to resist heat and boast impressive mechanical properties, featuring tensile strength ranging from 450 to 650 MPa and yield strength between 235 and 355 MPa, depending on the specific steel grade (such as P235GH or P265GH). The Brinell hardness typically falls between 120 and 180 HB. Built for high-temperature applications, these pipes can be normalized or hot-finished to boost their strength, ductility, and long-lasting performance under thermal stress.
| Standard | : | EN 102ie-2 |
| EN 10216 Steel Pipe Materials | : | P195GH, P235GH, P265GH |
| EN 10216 Steel Pipe Outside Diameter | : | 10.2mm – 711mm |
| EN 10216 Steel Pipe Wall Thickness | : | 1.6mm – 100mm |
| EN 10216 Steel Pipe Delivery Conditon | : | Normalized |
| EN 10216 MOQ | : | 2 Tons per size |
| EN 10216 Pipe Shippment | : | 20’GP/40’GP/40’HQ FCL or LCL |
| EN 10216 Pipe Delivery | : | Depends on the stock availability and actual order quantities. |
| Steel grades | CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% MAX | |
| EN P195GH | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P235GH | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| EN P265GH | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | >\= 0,020 | 0,30 | 0,010 | 0,040 | 0,02 | 0,70 |
| 16Mo3 | 0,12- 0,20 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30 | 0,25- 0,35 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 14MoV6-3 | 0,10- 0,15 | 0,15- 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,30- 0,60 | 0,50- 0,70 | 0,30 | >\= 0,020 | 0,30 | – | 0,22-0,28 | – | – |
| 13CrMo4-5 | 0,15 | 0,50- 1,00 | 0,30- 0,60 | 0,025 | 0,020 | 1,00- 1,50 | 0,45- 0,65 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| 10CrMo9-10 | 0,10- 0,17 | 0,35 | 0,40- 0,70 | 0,025 | 0,020 | 0,70- 1,15 | 0,40- 0,60 | 0,30 | >\= 0,020 | 0,30 | – | – | – | – |
| Mechanical properties | |||||||||||||
| Pipe types | Steel grades | Mechanical properties during tensile testing in room temperature | Resilience | ||||||||||
| Boiler P195GH, P235GG P265GH 16Mo3 14MoV6-3 13CrMo4-5 10CrMo9-10 Wg PN-EN 10216-2 | Upper yield limit or yield strength Re or R0,2 for wall thickness of t min | Tensile strength Rm | Elongation A min% | Minimum energy average absorbed KVJ at the temperature of 0°C | |||||||||
| T<\=16 | 16<T<\=40 | 40<t<\=60 | 60<T<\=60 | I | T | ||||||||
| MPa | MPa | MPa | MPa | MPa | I | t | 20 | 0 | -10 | 20 | 0 | ||
| EN P195GH | 195 | – | – | – | 320- 440 | 27 | 25 | – | 40 | 28 | – | 27 | |
| EN P235GH | 235 | 225 | 215 | – | 360- 500 | 25 | 23 | – | 40 | 28 | – | 27 | |
| EN P265GH | 265 | 255 | 245 | – | 410- 570 | 23 | 21 | – | 40 | 28 | – | 27 | |
| 16Mo3 | 280 | 270 | 260 | – | 450- 600 | 22 | 20 | 40 | – | – | 27 | – | |
| 14MoV6-3 | 320 | 320 | 310 | – | 460- 610 | 20 | 18 | 40 | – | – | 27 | – | |
| 13CrMo4-5 | 290 | 290 | 280 | – | 440- 590 | 22 | 20 | 40 | – | – | 27 | – | |
| 10CrMo9-10 | 280 | 280 | 270 | – | 480- 630 | 22 | 20 | 40 | – | – | 27 | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yousef Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10216-2 Pipe products in Riyadh, Saudi Arabia. Specializing in premium steel materials, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Yousef Steel provides top-grade materials that ensure outstanding performance in various industrial applications. Trust Yousef Steel for all your Carbon Steel EN 10216-2 Pipe needs.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
Carbon Steel EN 10216-2 Pipes are commonly utilized in industries where resistance to high temperatures and pressures is essential. Typical applications include steam and hot water pipelines in power plants, petrochemical processing systems, oil and gas refineries, and heat exchangers. These seamless pipes are also integral to boiler systems and pressure vessels, thanks to their outstanding thermal and mechanical performance. Their capability to endure fluctuating pressures and high temperatures makes them perfect for the energy, industrial processing, and chemical sectors, ensuring long-term safety, reliability, and efficiency in continuous, high-demand operations.
Yousef Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Riyadh, Saudi Arabia.
