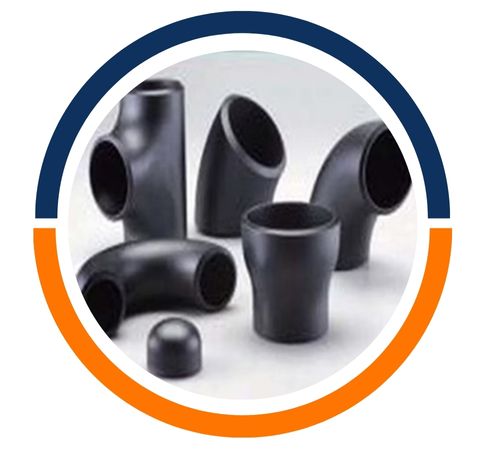

Yousef Steel, a reputable steel manufacturer and supplier located in Riyadh, Saudi Arabia, provides top-notch **Carbon Steel ASTM A234 WPB pipe fittings** that are specifically crafted for high-temperature and high-pressure piping systems. These fittings play a crucial role in the construction of pipelines utilized in the oil & gas, power generation, petrochemical, and water treatment sectors. Yousef Steel guarantees adherence to ASTM standards, delivering robust, precisely engineered fittings that are perfect for both seamless and welded pipe connections.

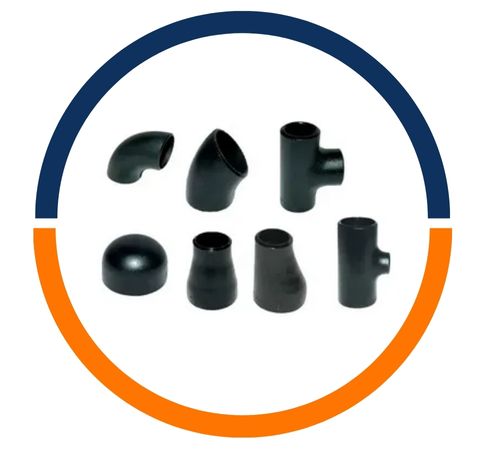

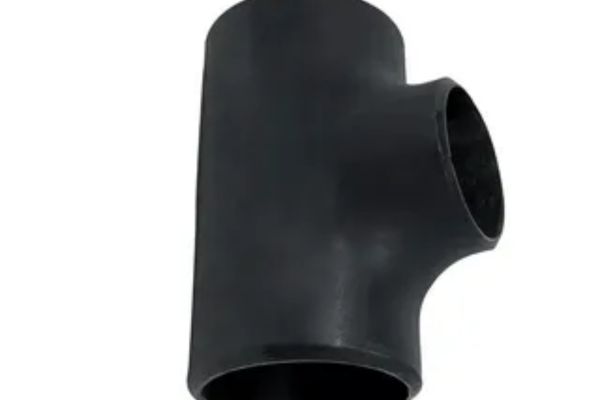

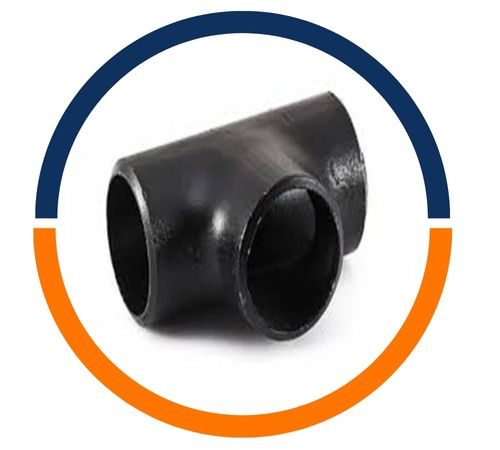

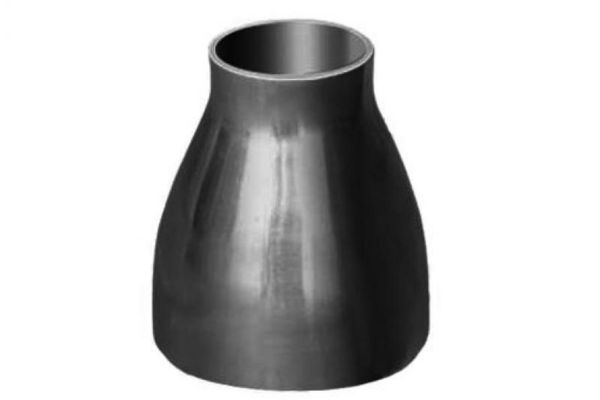

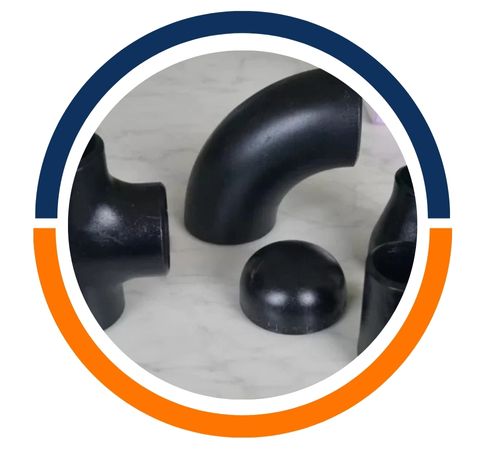

The ASTM A234 WPB fittings are constructed from killed carbon steel and come in various shapes, including elbows, tees, reducers, caps, and crosses. The “WPB” designation signifies wrought carbon steel suitable for moderate to high-temperature applications. These fittings boast a minimum yield strength of 240 MPa and a minimum tensile strength of 415 MPa. They are known for their excellent weldability, machinability, and mechanical strength, making them ideal for critical piping systems that experience thermal and mechanical stress.
| Specification | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/2″ NB to 24″NB in. |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Surface Treatment | Rust-proof black oil or hot galvanized, Transparent oil |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| Tensile Requirements | WPB | WPC |
| Tensile Strength, min, ksi[MPa] | 60-85 [415-585] | 70-95 [485-655] |
| Yield Strength, min, ksi[MPa] | 32 [240] | 40 [275] |
| Pipe | Fittings | Flanges | Valves | Bolts & Nuts |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipe Size | O.D. | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | LR | SR | LR | LR | ||||
| (Millimetre) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radii (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |

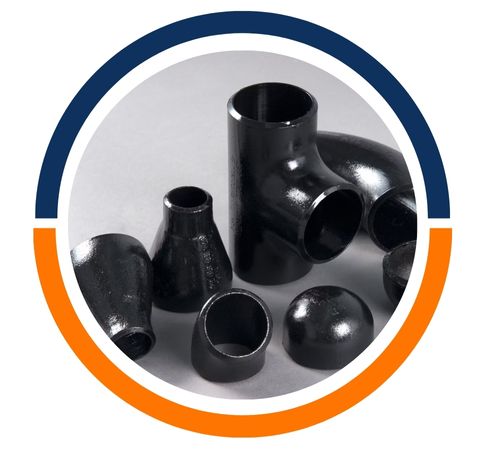

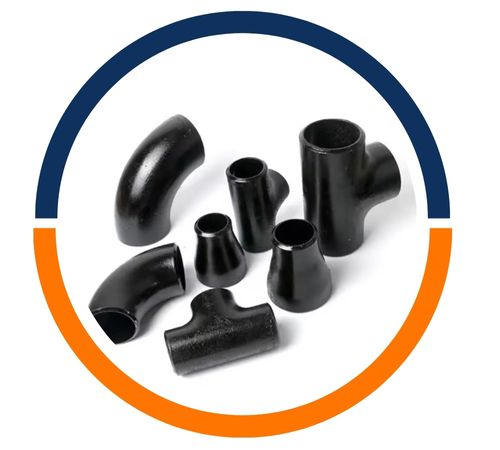

Commonly found in refineries, chemical plants, and pressure piping systems, A234 WPB fittings provide reliable flow control, direction changes, and transitions between pipe sizes. Yousef Steel offers these fittings in a variety of dimensions, schedules (like SCH 40, SCH 80), and pressure ratings (ANSI B16.9 / B16.28), with end types including butt-weld, socket-weld, and threaded, tailored to meet customer specifications. Comprehensive documentation, third-party inspections, and EN 10204 3.1/3.2 certification are available to fulfill precise project requirements and international standards.
Carbon Steel A234 WPB pipe fittings are largely applied in oil and gas, power generation, petrochemical, and chemical processing industries because of their superior strength, durability, and corrosion resistance. They find large-scale applications in piping systems to change the direction, branch, or diameter of flow. These fittings are best suited for high-pressure and high-temperature applications and find application in refineries, pipelines, and boiler systems. They also provide leak-proof connections in safety-critical systems.
Yousef Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Riyadh, Saudi Arabia.
