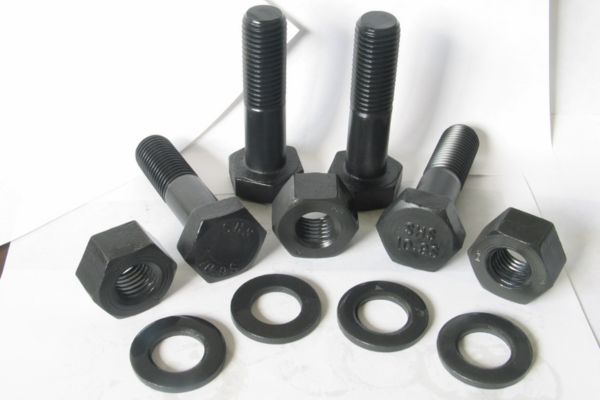

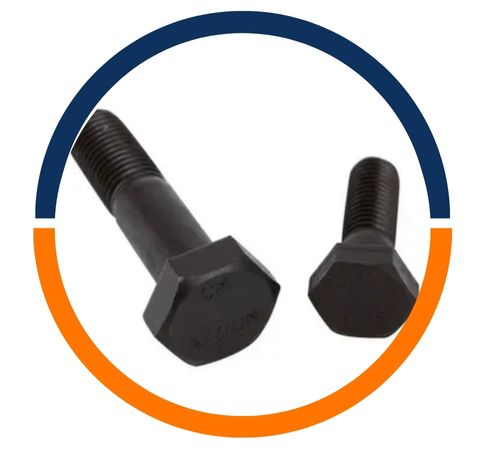

Yousef Steel is a reliable producer and distributor of carbon steel fasteners for high performance in Riyadh, Saudi Arabia, including the popular 8.8 grade. With precision engineering and compliance with international standards, Yousef Steel provides a wide selection of carbon steel 8.8 fasteners including bolts, nuts, screws, and washers. These fasteners are engineered to provide consistent mechanical strength and performance in harsh industrial conditions. In keeping with an unyielding dedication to quality and customer satisfaction, Yousef Steel provides varied industries such as construction, manufacturing, energy, and infrastructure in Saudi Arabia and other regions.
Carbon Steel 8.8 fasteners consist of medium carbon steel often quenched and tempered to provide increased strength. The common chemical composition contains carbon (0.25–0.30%), manganese (0.50–1.00%), phosphorus and sulfur (each up to 0.05%), and occasionally small traces of boron. The tensile strength of these fasteners is around 800 MPa and yield strength around 640 MPa, while elongation properties are good at around 12%. They provide a harmonious blend of hardness, tensile strength, and ductility, which is perfect for use in structural integrity and shear and stress-resistant applications.
| Carbon Steel 8.8 | C | Mn | Si | P | S | B |
| 0.25-0.55 | 0.25 | 0.035 | 0.035 | 0.003 |
| Yield strength | Tensile strength | Elongation | Reduction | Hardness |
| Mpa | Mpa | % | % | HRC |
| min | min | min | min | |
| 660 | 830 | 12 | 35 | 23-34 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yousef Steel is a trustworthy manufacturer and supplier of quality Carbon Steel 8.8 Fasteners in Riyadh, Saudi Arabia. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel 8.8 Fasteners needs!
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| Grade A upto length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
| Head Across Flat (S) Nom = Max Min Grade A Grade B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Grade A not applicable to these dia’s | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Head Height (K) Nom Tol + or – Grade A Grade B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | Grade A not applicable to these dia’s | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
| Across corners e Min Grade A Grade B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Grade A not applicable to these dia’s | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Major Dia at thread (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.958 | 21.958 | 23.952 | 26.952 | 29.947 | 32.947 | 35.94 | 38.94 | 41.937 | 44.937 | 47.929 | 51.929 |
| Thread Length (b) For lengths < or = 125mm For lengths > 125mm <= 200mm For lengths > 200mm | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
Carbon Steel 8.8 fasteners are utilized in applications where strength and longevity are critical. They are perfect for structural steel connections, heavy machinery assembly, automotive parts, and engineering applications. These fasteners are often employed in bridges, buildings, and industrial machinery where vibration, load-carrying, and exposure to the environment require solid fastening solutions. Because of their mechanical strength, they are typically selected for bolted joints that subject the bolts to high tensile loads and dynamic forces, which provide long-term reliability and performance even under adverse operating conditions.
