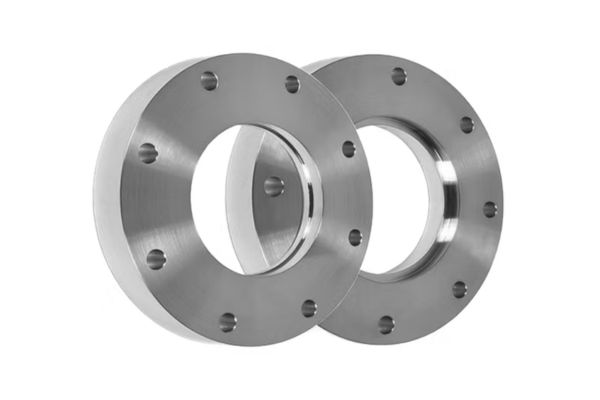

Yousef Steel stands out as a trusted manufacturer and supplier of **Alloy Steel F1 Flanges** in Riyadh, Saudi Arabia. We take pride in offering top-notch flanges that are built to provide strength, durability, and resistance in tough industrial settings. Our F1 flanges are crafted in accordance with international standards, making them perfect for high-pressure and high-temperature applications in sectors like oil and gas, power generation, petrochemicals, and chemical processing. At Yousef Steel, we focus on precision manufacturing, thorough quality testing, and strict adherence to global specifications, ensuring that our Alloy Steel F1 Flanges deliver exceptional performance and reliability.

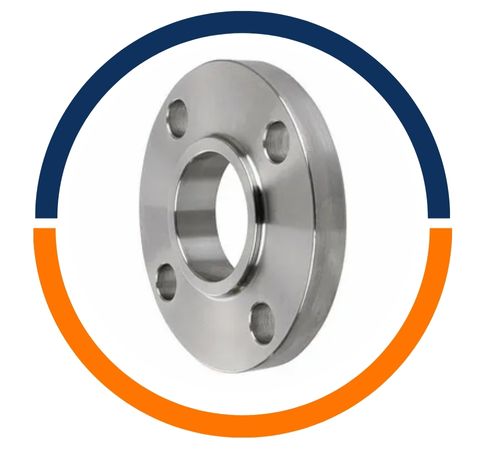

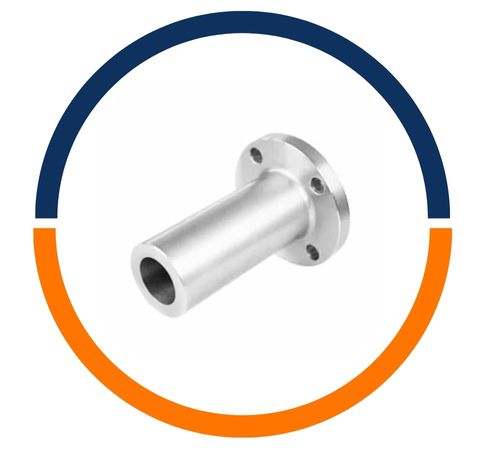

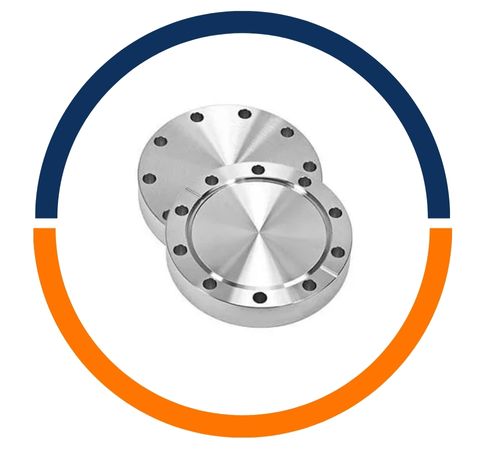

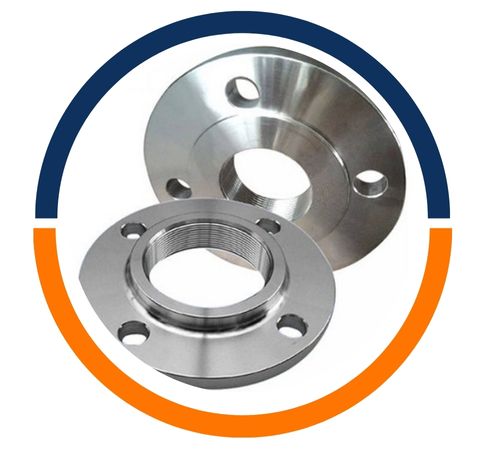

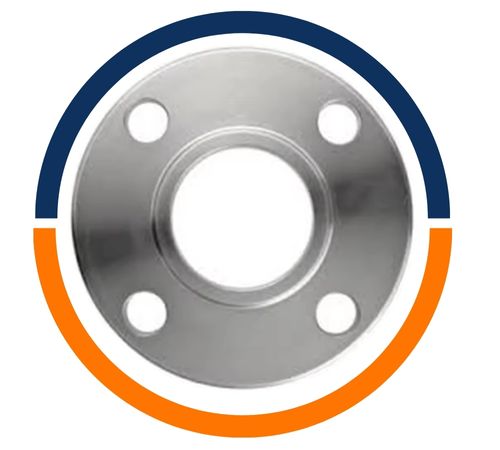

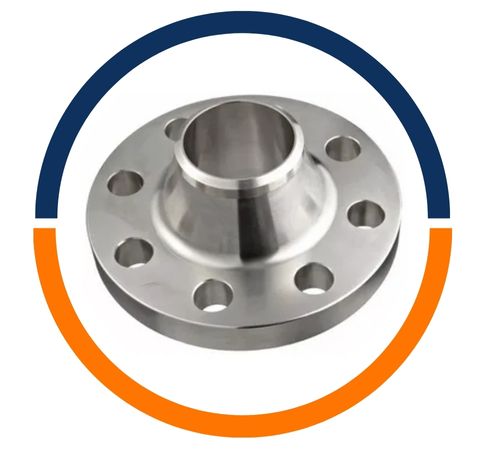

These flanges are made from a blend of carbon, chromium, and molybdenum, which gives them impressive tensile and yield strength, toughness, and creep resistance. The alloying elements also boost their resistance to oxidation, scaling, and corrosion, making them ideal for long-term use in harsh environments. We offer a variety of types, including weld neck, slip-on, blind, socket weld, threaded, and lap joint flanges, with a range of sizes, pressure ratings, and dimensions to meet the diverse needs of your projects.
Alloy Steel Flanges Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F1 | 0.28 | 0.60 – 0.90 | 0.045 | 0.045 | 0.15 – 0.30 | – | – | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F1 | 485 | 275 | 20 | – | 143-192 |
| STANDARD | DIN WERKSTOFF NR. | DIN | UNS |
| ASTM A182 F1 Flanges | 1.5415 | 15M03 | K12822 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size in (Inches) | Size in (Millimeter) | Number of Bolts | Bolt Size Of UNC | Length Of RF Stud | Size Of ISO Stud | Length Of Machine Bolts |
|---|---|---|---|---|---|---|
| Class 300 Flange | ||||||
| 1/2 | 15 | 4 | 1/2 | 65 | M14 | 55 |
| 3/4 | 20 | 4 | 5/8 | 75 | M16 | 65 |
| 1 | 25 | 4 | 5/8 | 75 | M16 | 65 |
| 1 1/4 | 32 | 4 | 5/8 | 85 | M16 | 70 |
| 1 1/2 | 40 | 4 | 3/4 | 90 | M20 | 75 |
| 2 | 50 | 8 | 5/8 | 90 | M16 | 75 |
| 2 1/2 | 65 | 8 | 3/4 | 100 | M20 | 85 |
| 3 | 80 | 8 | 3/4 | 110 | M20 | 90 |
| 3 1/2 | 90 | 8 | 3/4 | 110 | M20 | 95 |
| 4 | 100 | 8 | 3/4 | 115 | M20 | 95 |
| 5 | 125 | 8 | 3/4 | 120 | M20 | 110 |
| 6 | 150 | 12 | 3/4 | 120 | M20 | 110 |
| 8 | 200 | 12 | 7/8 | 140 | M24 | 120 |
| 10 | 250 | 16 | 1 | 160 | M27 | 140 |
| 12 | 300 | 16 | 1 1/8 | 170 | M30 | 145 |
| 14 | 350 | 20 | 1 1/8 | 180 | M30 | 160 |
| 16 | 400 | 20 | 1 1/4 | 190 | M33 | 165 |
| 18 | 450 | 24 | 1 1/4 | 195 | M33 | 170 |
| 20 | 500 | 24 | 1 1/4 | 205 | M33 | 185 |
| 24 | 600 | 24 | 1 1/2 | 230 | M39 | 205 |
Yousef Steel is a top manufacturer and supplier of high-quality Alloy Steel F1 Flanges products in Riyadh, Saudi Arabia. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Alloy Steel F1 Flanges find extensive application in **boiler systems, turbines, high-pressure piping networks, heat exchangers, refineries, petrochemical plants, and power stations**, where mechanical strength and thermal stability are crucial. They are also essential in chemical plants and heavy machinery that require reliable connections and long-lasting durability. With their strong mechanical properties, corrosion resistance, and compliance with international standards, Alloy Steel F1 Flanges are the go-to choice for industries looking for dependable and high-performance flange solutions.
