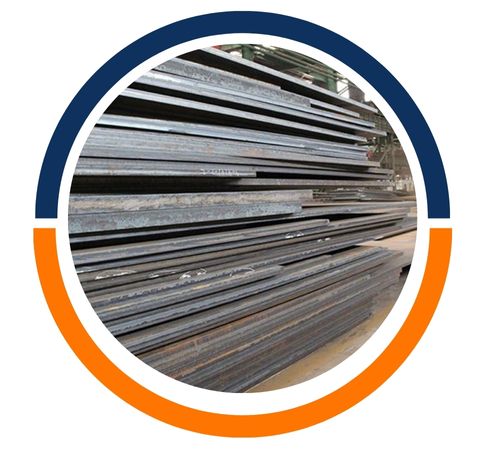

Yousef Steel is a reputable manufacturer and supplier located in Riyadh, Saudi Arabia, specializing in high-quality Shipbuilding Steel Sheet and Plate. We take pride in adhering to international standards, providing steel plates that are not only durable but also resistant to corrosion, making them perfect for the tough conditions of marine environments. Our products are crafted with precision, ensuring they offer exceptional strength, weldability, and toughness—qualities that are essential for building safe and reliable vessels. By leveraging cutting-edge technology and rigorous quality control, Yousef Steel guarantees that every Shipbuilding Steel Sheet and Plate meets the high standards of the global shipbuilding industry.
The Shipbuilding Steel Sheet and Plate primarily consists of carbon, manganese, phosphorus, sulfur, silicon, and a few trace alloying elements that boost its corrosion resistance and strength. Its mechanical properties include impressive tensile strength, excellent toughness, superior impact resistance, and good weldability. These characteristics make the Shipbuilding Steel Sheet and Plate perfect for marine construction, ensuring a long service life even when exposed to seawater, high pressure, and varying weather conditions, all while maintaining structural integrity and safety in shipbuilding projects.
Weight | Up to 40 ton |
| Width | 1500-4000 |
| Thickness | 4-200 mm |
grades | EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents |
| Length | Up to 20000 |
| Delivery condition | quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled |
| Grade | C%≤ | Al % | Mn % | p % ≤ | S % ≤ | Si % | Nb % | V % |
|---|---|---|---|---|---|---|---|---|
| D32 A32 E32 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | — | — |
| A | 0.22 | — | ≥ 2.5C | 0.04 | 0.40 | 0.10~0.35 | — | — |
| B | 0.21 | — | 0.60~1.00 | 0.04 | 0.40 | 0.10~0.35 | — | — |
| E | 0.18 | ≥0.015 | 0.70~1.20 | 0.04 | 0.04 | 0.10~0.35 | — | |
| D36 A36 E36 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | 0.015~0.050 | 0.030~0.10 |
| D | 0.21 | ≥0.015 | 0.60~1.00 | 0.04 | 0.04 | 0.10~0.35 | — | — |
| Grade | Yieldpoint (Mpa) ≥ | Tensile Strength (Mpa) | Elongation （%）≥ | cold bend test | Thickness (mm) | V-impact test | |||
|---|---|---|---|---|---|---|---|---|---|
| b=5a 120° | b=2a 180° | Temperature （℃） | Average AKV A kv /J | ||||||
| lengthways | crosswise | ||||||||
| ≥ | |||||||||
| A | 235 | 400~490 | 22 | — | d=2a | ≤50 mm | — | — | — |
| B | d=3a | — | 0 | 27 | 20 | ||||
| D | -10 | ||||||||
| E | -40 | ||||||||
| A32 | 315 | 440~590 | 22 | d=3a | — | ≤50 mm | 0 | 31 | 22 |
| D32 | -20 | ||||||||
| E32 | -40 | ||||||||
| A36 | 355 | 490~620 | 21 | d=3a | — | ≤50 mm | 0 | 34 | 24 |
| D36 | -20 | ||||||||
| E36 | -40 | ||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yousef Steel is one of the most prominent manufacturers and suppliers of superior quality Shipbuilding Steel Sheet and Plate in Riyadh, Saudi Arabia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Grade | Maximum Thickness (mm) | Standard | Minimum Thickness (mm) |
|---|---|---|---|
| EH36 | 150 mm | Lloyds Register | 5 mm |
| AH36 | 150 mm | Lloyds Register | 5 mm |
| Grade A | 150 mm | Lloyds Register | 5 mm |
| DH36 | 150 mm | Lloyds Register | 5 mm |
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| Grade A | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
This type of steel is widely utilized in the construction of ship hulls, decks, offshore platforms, and marine equipment. It’s crucial for building cargo ships, tankers, passenger vessels, and naval ships due to its outstanding durability and resistance to seawater corrosion. Additionally, it plays a vital role in port infrastructure, oil rigs, and coastal defense structures. The combination of strength and workability of this steel makes it easy to fabricate, weld, and maintain, establishing Shipbuilding Steel Sheet and Plate as an essential material in both commercial and defense marine industries around the globe.
Yousef Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Riyadh, Saudi Arabia.
