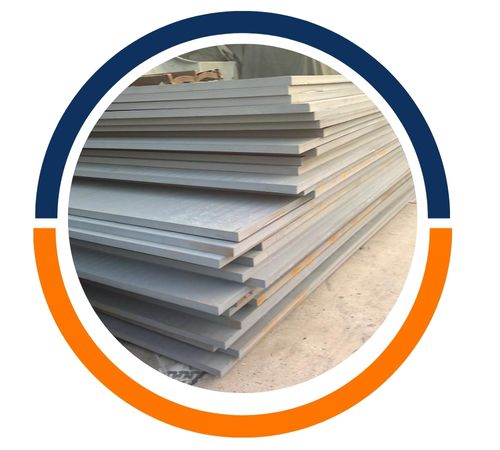

Yousef Steel, based in Riyadh, Saudi Arabia, is your go-to supplier for **ABS EH36 Shipbuilding Steel Sheet and Plates**. They provide top-notch materials that adhere to the rigorous standards of the shipbuilding and offshore industries. These steel plates are sourced from leading mills and crafted to meet **ABS (American Bureau of Shipping)** specifications. Known for their impressive strength, outstanding toughness, and exceptional corrosion resistance in marine settings, EH36 steel plates are a reliable choice. Yousef Steel prides itself on maintaining strict quality control, ensuring timely deliveries, and offering expert customer support to shipyards, offshore platform manufacturers, and marine engineering firms throughout Saudi Arabia and the broader Middle East.
**ABS EH36 Steel Plates** are high-strength structural steel plates that play a crucial role in shipbuilding and offshore applications. They are manufactured to comply with ASTM A131 and ABS certification for the EH36 grade, boasting a minimum yield strength of 355 MPa and a tensile strength ranging from 490 to 620 MPa. The chemical makeup includes carbon, manganese, silicon, phosphorus, sulfur, and trace amounts of alloying elements like chromium and nickel, all contributing to enhanced performance. EH36 steel is particularly noted for its excellent notch toughness, even in colder temperatures, making it ideal for hull construction, deck structures, and heavy marine components.
STANDARD:Â ASTM A131, ASME SA131
PLATES QUALITY: EH36(Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| Grade EH36 | C | Si | Mn | P | S | V | Al | Cr | Cu | Mo | Nb | Ni | Ti |
| 0.180 | 0.1-0.50 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.2 | 0.35 | 0.08 | 0.02-0.05 | 0.4 | 0.02 |
| Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Charpy V Impact Test | |
| Grade ABS EH36 | t≤50 | Min 355 Mpa | 490-620 Mpa | 21% | 24J | 34J |
| 50＜t≤70 | Min 355 Mpa | 490-620 Mpa | 21% | 27J | 41J | |
| 70＜t≤100 | Min 355 Mpa | 490-620 Mpa | 21% | 34J | 50J | |
| Grade | DNV | GL | LR | BV | CCS | NK | KR | RINA |
| ABS EH36 | NV E36 | GL-E36 | LR/EH36 | BV/EH36 | CCS/E36 | K E36 | R E36 | RI/E36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yousef Steel is one of the most prominent manufacturers and suppliers of superior quality ABS EH36 Shipbuilding Steel Sheet and Plates in Riyadh, Saudi Arabia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| EH36 | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
ABS EH36 Shipbuilding Steel Sheets and Plates are extensively utilized in building ship hulls, decks, bulkheads, and offshore oil platforms, where high strength and durability against harsh marine conditions are crucial. These plates are also essential in the fabrication of cargo vessels, naval ships, floating production systems, and structural components that face saltwater and high-pressure environments. With their superior mechanical properties, weldability, and corrosion resistance, EH36 steel is the material of choice for ensuring the safety, longevity, and performance of vessels and offshore structures operating in challenging sea conditions.
