Yousef Steel, a prominent manufacturer and supplier located in Riyadh, Saudi Arabia, specializes in high-quality **15Mo3 pipes** that are extensively utilized in pressure vessels, boilers, and heat exchangers designed for high-temperature operations. This chromium-molybdenum alloy steel, known as 15Mo3, is celebrated for its remarkable creep resistance, excellent weldability, and outstanding mechanical properties when exposed to elevated temperatures. At Yousef Steel, we prioritize precision in manufacturing and uphold rigorous quality control measures to comply with both domestic and international standards, ensuring that our pipes are reliable for critical industrial applications.
Typically, 15Mo3 pipes consist of approximately 0.15% carbon, 0.30% molybdenum, along with trace elements of chromium and manganese, all of which contribute to enhanced strength, corrosion resistance, and stability at high temperatures. These pipes are designed to provide impressive tensile strength, impact toughness, and resistance to oxidation and carburization under elevated conditions. They can be produced as seamless or welded pipes and are often delivered in normalized or normalized and tempered states to boost their mechanical performance.
| Welded Pipe Size | 5.0 mm – 1219.2 mm |
|---|---|
| Grade 15Mo3 DIN 2609 EFW Pipe size | 5.0 mm – 1219.2 mm |
| CS Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Standard | AISI, DIN, EN, GB, IS, JIS, ASTM, ASME Pipe |
| Mild Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| Carbon Steel DIN 2609 Grade 15Mo3 Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| DIN 2609 Gr 15Mo3 Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| CS Welded Tube Size | 6.35 mm OD To 152 mm OD |
| DIN 2609 Gr. 15Mo3 Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| DIN 2609 Gr St52 Carbon Steel Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |

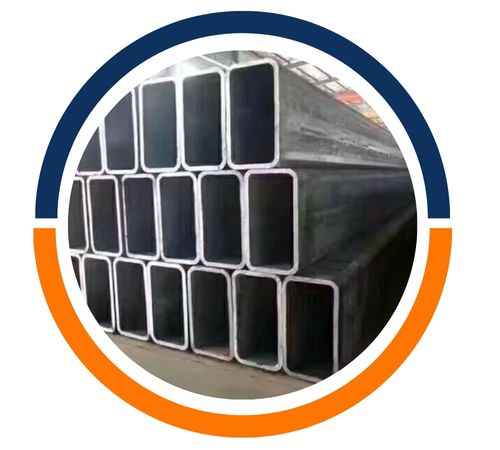

| High Temperature Carbon Steel DIN 2609 Gr 15Mo3 Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| DIN Gr. 2609 15Mo3 Steel Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Mild Steel Marking | All Tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Low Temperature Carbon Steel DIN 2609 Grade 15Mo3 Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| DIN Gr. 15Mo3 Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Grade 15Mo3 DIN 2609 Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| 2609 Gr. 15Mo3 End | Plain End, Beveled End, Treaded Pipe & Tube |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| 0.12 – 0.20 | 0.10 – 0.35 | 0.40 – 0.80 | 0.035 | 0.035 | 0.25 – 0.35 | – | – | – | – |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 450 | 600 | – | 22 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Commonly found in the oil and gas, petrochemical, power generation, and chemical sectors, 15Mo3 pipes are perfect for transporting steam, hot gases, and liquids in high-temperature settings. Their exceptional heat resistance and mechanical stability guarantee a long service life and safety in applications involving boilers, heat exchangers, and pressure vessels. Yousef Steel offers 15Mo3 pipes in a variety of sizes and thicknesses, along with tailored cutting, testing, and certification services to fulfill specific project needs.
| Cold Drawn | Outside Diameter, mm | Tolerance | – |
|---|---|---|---|
| outer diameter ≤ 114 | ± 10% or ± 0.2mm | – | |
| Hot rolled | Outside Diameter, mm | Tolerance | WT/outer diameter |
| outer diameter ≤ 219.1 | ± 12.5% or ± 0.4mm | WT/outer diameter ≤ 2.5% | |
| 2.5% ＜ WT/outer diameter ≤ 5% | |||
| 5% ＜ WT/outer diameter ≤ 10% | |||
| WT/outer diameter > 10% | |||
| outer diameter > 219.1 | ± 20% | WT/outer diameter ≤ 2.5% | |
| ± 15% | 2.5% ＜ WT/outer diameter ≤ 5% | ||
| ± 12.5% | 5% ＜ WT/outer diameter ≤ 10% | ||
| ± 10% | WT/outer diameter > 10% |
The 15MO3 pipes are widely used due to their excellent heat resistance and high temperature strength in boilers, pressure containers, power plants and heat exchange. They are ideal for petrochemical, chemical and oil and gas industries, which ensure reliable performance under extreme conditions. These pipes effectively transport hot fluids and gases under high pressure, making them perfect for steam lines, overheeters and industrial pipe systems. Their durability, corrosion resistance and weldability make them a preferred option for high load applications and high accident.
Yousef Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Riyadh, Saudi Arabia.
